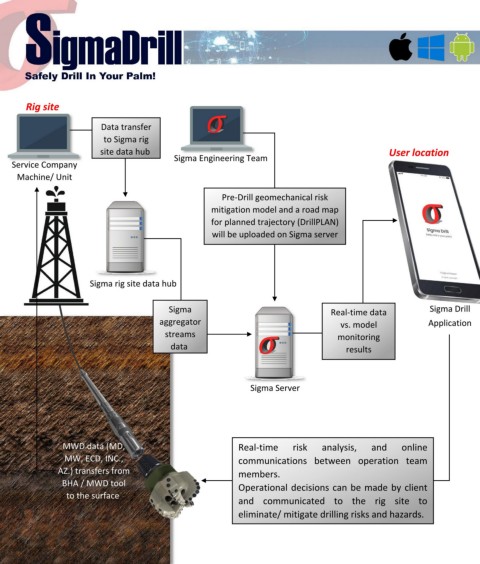

Rig site

Data transfer
to Sigma rig
site data hub User location
Sigma Engineering Team
Service Company
Machine/ Unit

Pre-Drill geomechanical risk
mitigation model and a road map
for planned trajectory (DrillPLAN)
will be uploaded on Sigma server

Sigma rig site data hub

Sigma Real-time data Sigma Drill
aggregator vs. model Application
streams monitoring
data results

Sigma Server

MWD data (MD, Real-time risk analysis, and online
MW, ECD, INC., communications between operation team
AZ.) transfers from members.
BHA / MWD tool Operational decisions can be made by client
to the surface
and communicated to the rig site to
eliminate/ mitigate drilling risks and hazards.
